Nantong Drayson Composite Material Co., Ltd. is one of the leading manufacturers and suppliers of grp angle in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Contact us for more details.
Manufacturing technique-Pultrusion:
Pultrusion is a continuous process, in which the reinforcing fibres are impregnated with a duroplastic resin.
After the impregnation with resin the fibres are led into the heated tool according to the shape of the profile. In the tool the profile is cured and then pulled out and cut to the required lengths.
FRP Angle products are top-quality structural building components useful in construction and general use.
Aluminum, wood and steel beams are being replaced around the world with stronger fiberglass structural memberssuch as fiberglass angle. Builders are making the switch to fiberglass for construction projects for many reasons.Primary among them is the durability of fiberglass structures in extreme environments such as waste water treatment,chemical processing plants,food processing facilities,or any environment where rust and wear take their toll on steel.
Parameters | |

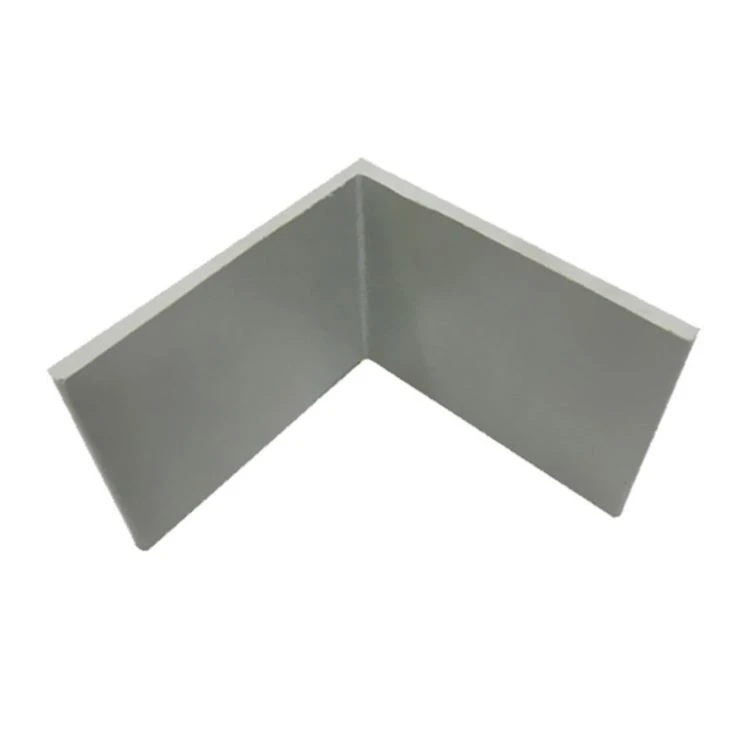

Type | GRP Angle |
Material | ECR Glass Fiber + Resin (ORTHO,ISO,VE,PHENOLIC)+Filling (ATH) |
Size | Can be customized (pls check detail as below form) |
Color | According to RAL Book.Yellow, Orange, Blue, Green, Grey, etc. can be cutomized |
Size
Item | Size AxBxT1xT2 (mm) |
EL25 | 25x25x3.2x3.2 、25x25x6.4x6.4 |
EL30 | 30x30x4.0x4.0 、 30x30x5.0x5.0 |
EL32 | 32x32x4.0x4.0 |
EL38 | 38x38x3.2x3.2 、 38x38x6.4x6.4 |
EL45 | 45x45x4.8x4.8 |
EL50 | 50.8x50.8x3.2x3.2 、 50x50x6.4x6.4 |
EL60 | 60x60x9.0x9.0 |
EL76 | 76x76x6.4x6.4 、76x76x9.5x9.5 |
EL101 | 101x101x6.4x6.4 、 101x101x8x8 |
EL152 | 152x152x6.4x6.4 、 152x152x9.5x9.5 |
L145 | 145x76x9.5x9.5 |
L170 | 170x76x9.5x9.5 |
L180 | 180x80x8.0x8.0 |
L254 | 254x40x6.4x6.4 |
Our Services
1. Good Quality Insurance
Our factory has passed ISO9001:2015, and our products are passed SGS ASTM E-84 test, we have a responsible quality team to check and ensure the quality. and we can conduct or apply professional test according to customers` specific requirement.
2. Design Service
We have a professional R&D team to offer suggestions of project, we provide design drawing for customers.
3. Custom Service Center
We have professional sales engineer team to offer best product suggestions for customers.
