Nantong Drayson Composite Material Co., Ltd. is one of the leading manufacturers and suppliers of fiberglass tube in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Contact us for more details.

Product Introduction

Fiberglass Tube is a kind of plastic tube with light weight, high strength and corrosion resistance.

Fiberglass Tube is made of resin as matrix and glass fiber as reinforcement through a series of special processes. It has the characteristics of corrosion resistance, long service life, strong designability, low resistance, no scaling, strong heat insulation and high comprehensive benefits. It is widely used in construction, cooling tower, gas transportation in industry, petroleum, pharmaceutical, chemical industry, sewage treatment and other industries.

Product Size

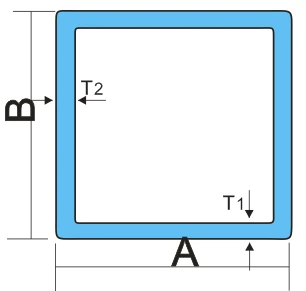

FRP Tube Drawing 1

Type	Dimension(mm)
Square Tube	A B T1 T2
ST25A	25x25x2.8x2.8
ST25B	25x25x3.2x3.2
ST25C	25x25x6.4x6.4
ST32	32x32x6.4x6.4
ST38A	38x38x3.2x3.2
ST38B	38x38x5.0x5.0
ST38C	38x38x6.4x6.4
ST44A	44x44x3.2x3.2
ST44B	44x44x6.4x6.4
ST50A	50x50x3.2x3.2
ST50B	50x50x3.5x3.5
ST50C	50x50x4.0x4.0
ST50D	50x50x5.0x5.0
ST50E	50x50x6.4x6.4
ST54A	54x54x3.2x3.2
ST54B	54x54x4.8x4.8
ST60A	60x60x5.0x5.0
ST64A	64x64x3.2x3.2
ST64B	64x64x4.4x4.4
ST64C	64x64x6.4x6.4
ST76A	76x76x3.2x3.2
ST76B	76x76x5.0x5.0
ST76C	76x76x6.4x6.4
ST101A	101x101x5.0x5.0
ST101B	101x101x5.0x5.0
ST101C	101x101x6.4x6.4
ST152A	152x152x6.4x6.4
ST152B	152x152x9.5x9.5
ST152C	152x152x12.7x12.7

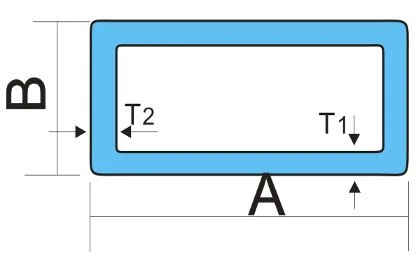

FRP Tube Drawing 2

Type	Dimension(mm)
Rectangular Tube	A B T1 T2
FT38	38.1x25.4x4.76
FT50A	51x25x3.0x3.0
FT50B	51x25x6.4x6.4
FT50C	50.8x20x6.4
FT50D	50.8x38.1x6.4
FT51A(stair)	51x25x4.0x4.0
FT51B(stair)	51x38x4.0x4.0
FT52(stair)	52x35x5.0x5.0
FT80	80x60x5.0x5.0
FT91A	91x38x4.0x4.0
FT112A	112x91x6.4x6.4
FT120A	120x45x3.0x3.0
FT175	175x50x9.0x9.0
FT186	186x32x4.75
FT197	197x44.3x5
