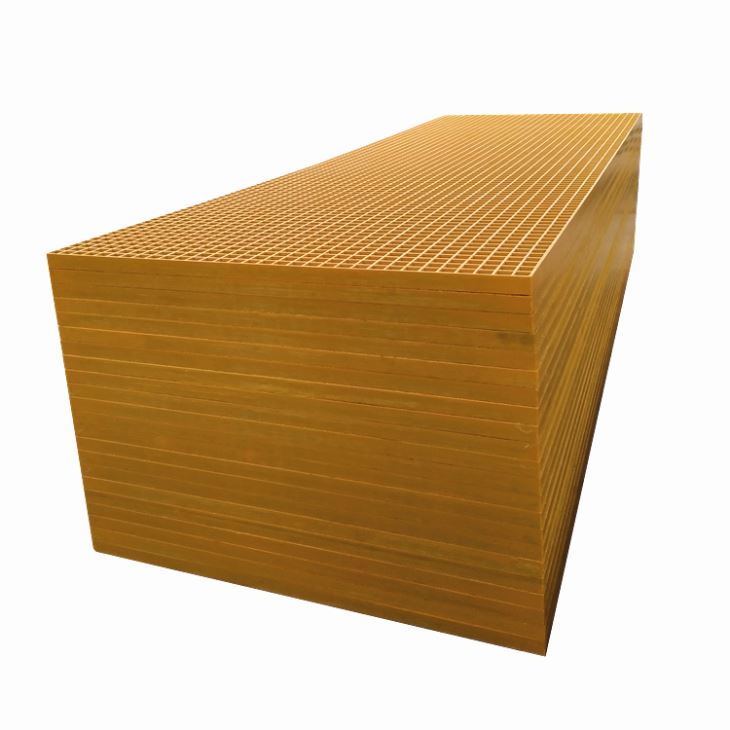

Nantong Drayson Composite Material Co., Ltd. is one of the leading manufacturers and suppliers of fiberglass floor grating in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Contact us for more details.
● Introduction
● Material
ECR Glass Fiber + Resins + Fillings
● Resins
Orthophthalic (Ortho) | Ortho resin is resistant to atmospheric corrosion. |
Isophthalic (ISO) | ISO resin is suitable for a corrosive and chemical environment and is highly fire-resistant with controlled spreading of smoke. |
Vinylester (VE) | VE is resistant to chemicals, such as acids, salts, and other corrosive substances. This type of resin is also highly fire-resistant. |
Phenolic | Phenolic resin is resistant to chemicals and is extremely fire- resistant and gives off very little smoke. |
● Thickness/Height
13mm, 15mm, 20mm, 25mm, 30mm, 38mm, 40mm, 50mm, 60mm,70mm
● Mesh Size
standard mesh size 38x38mm, 40x40mm, 50x50mm, 25x100mm etc.
mini mesh size 20x20/40x40mm,19x19/38x38mm
micro mesh size 13x13/40x40mm
● Panel size
1220x3660mm, 1000x3000mm,1007x4007mm etc.
 | Concave Surface (Meniscus Surface) | The concave surface grating is economical and non slip |
 | Smooth Surface | The smooth surface grating can be applied in such as food industry and poultry industry which is easy for cleanliness |
 | Gritted Surface | The grit surface makes the grating non-slip and provides a comfortable feeling underfoot. |
 | Top Solid Cover Surface | Usually we add 3mm-5mm thickness top solid cover to make the grating as a heavy-load panel floor |
l Application
|
|
|
Walkway Platform Grating | Car Wash Floor Grating | Stair Grating |
|
|
|
Farm & Breed Industry Floor Grating | Decorative Ceiling Roofing Grating | Tree Protective Grating |
|
|
|
Fence Grating | Drain Grating | Marine Industry Platform |
● The Advantages
The fiberglass floor grating is more suitable than traditional materials in application.
Easy Cutting
Firstly it can be cut quickly and easily, and won`t change the properties of the material. you only need to cut it with an angle grinder, skill saw or even a jigsaw with the correct blade.
Lightweight and Economic
Secondly the fiberglass floor grating with a density 4 times less than steel it is very lightweight in comparison making it easier to handle on site, meantime it reduce the shipping costs, maintain extremely high strength and impressive load capacity.
Resistant to chemical corrosion
the fiberglass floor grating is resistant to chemical corrosion so it can be applied in almost any environment, it can used effectively in areas where alternatives such as steel, concrete or timber would not stand up to the job such as salt water and chemically exposed environments.
Anti-Fire & Anti-UV
the fiberglass floor grating is Anti UV, it is non conductive so can be used safely around electricity, it is manufactured with fire-retardant additives as standard, it is impact resistant so will withstand a level of abuse and, in this day and age, one of its big pluses is that it has no scrap value so is off the radar of potential thieves.
Withstand Temperatures
It can withstand temperatures in a range of -150 to +150 degrees Fahrenheit without deterioration and, if deflected by load, will return to its original form one the load is removed.
● Cutting Suggestions
We can cut it well according to the special size required by the customer.
If you need to cut by yourself, please refer to the instructions as below:
There are usually two cutting method, Straight line cutting and Curved cutting.We can use ceramic disc or emery cutter for cutting the scene, even by an ordinary hacksaw blade for cutting. The blade thickness is 4-5mm
● Cautions for cutting
1.Make sure the size:cutting as far as the closed mesh edge size, in this way the load performance is better.
2.Fixed: grating should be fixed, in order to avoid moving when cutting
3.Safety: before cutting, workers should wear eye protection and masks and gloves and overalls, good ventilation, light bright choice occasions for cutting dust, relatively large, must pay attention to wear masks.
4.Grating shelving: usually cut the bottom side in order to reduce the debris during cutting
5.Dimensions: please check on edge before cutting. width deviation is -6mm~0mm; circular diameter deviation -9.5mm~0mm;
6.Post-processing: after cutting, the surface needs to be coated with resin. The resin used is higher than the grade of the grating resin, and the adjacent benzene grid is made of inter benzene resin to prevent erosion of the external glass fiber.
7.Grinding: available portable angle grinder, grinding machine, ordinary sandpaper grinding and filing.
8.Drilling: the holes above 12mm can be drilled with a common drilling machine, and the small holes can be carried by hand.
● Our Services
Nantong Drayson Composite Material Co.,ltd is founded in Year 2012.
Our main products are
FRP molded grating
FRP pultruded grating
FRP pultruded structural profiles
FRP handrail&ladder system
● Our advantages:
1.More than 25pcs of molded grating moulds & 5pcs of pultrusion lines.
2.6000 square meters factory and 100 employees.
3.SGS,ISO certified, and we support 3rd-test before shipping under customer`s request.
4.Annual sales revenue: 30 containers any more questions please feel free to contact us.
