Nantong Drayson Composite Material Co., Ltd. is one of the leading manufacturers and suppliers of fiberglass flat bar in China. With abundant experience, we warmly welcome you to buy high quality customized products at competitive price from our factory. Contact us for more details.
Introduction

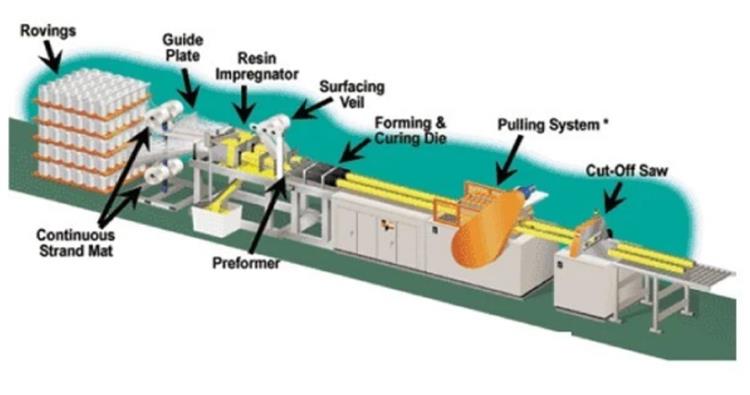

FRP Pultruded production is a continous production process to produce fiberglass reinforced polymer profiles of any length and consistent section. Reinforced fibers may be roving, continous mat,woven robing,carbon or others.
The fiberglass are impregnated with polymer matrix (resin,minerals,pigments,additives) and passed through a pre-forming station that produces the stratification necessary to give the profile the desired properties. After the pre-forming step, the resin-impregnated fibers are pulled through a heated die to polymerize the resin.
Applications of Fiberglass Flat Bar
It's widely used for yoga fitness circle, beach chairs, sails, fitness equipment, toys, bow limbs, curtain flat strips, luggage frames, handbag, display rack materials, transformer stays, concrete reinforcements ribs and so on.
The characteristics of Fiberglass Flat Bar:
Economy Characteristic
Insulation
Safety
Customization
UV resistance
Light weight and high strength
Fire-retardant
Corrosion-Resistance

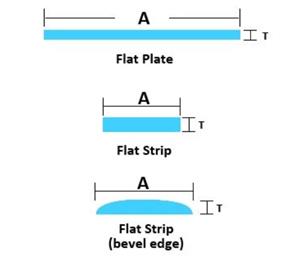

Size of Fiberglass Flat Bar
| Type | Dimension(mm) |
Flat plate/panel | A*T | |
FP32 | 3.2x1220 | |
FP64 | 6.4x1220 | |
FP95 | 9.5x1220 | |
FP127 | 12.7x1220 | |
FT152 | 15.2x1220 | |
FT190 | 19x1220 | |
Flat strip | A*T | |
FS19 | 19x6.4 | |
FS30A | 30x3.0 | |
FS30B | 30x6.4 | |
FS35 | 35x8.0 | |
FS38 | 38x5.0 | |
FS40 | 40x8.0 | |
FS50B | 50x4.0 | |
FS50C | 50x8.0 | |
FS50D | 50x15 | |
FS50E | 50x17 | |
FS102 | 102x5.0 | |
FS152 | 152x20 | |
FS190 | 190x15 | |
FS280 | 280x10 | |
FS50A(bevel edge) | 50x3.2 | |
FS60A(bevel edge) | 60x3.2 | |
FS70(bevel edge) | 70x4.0 | |
FS90A(bevel edge) | 90x3.2 | |
FS100(bevel edge) | 100x3.2 | |
FS120(bevel edge) | 120x3.0 |
