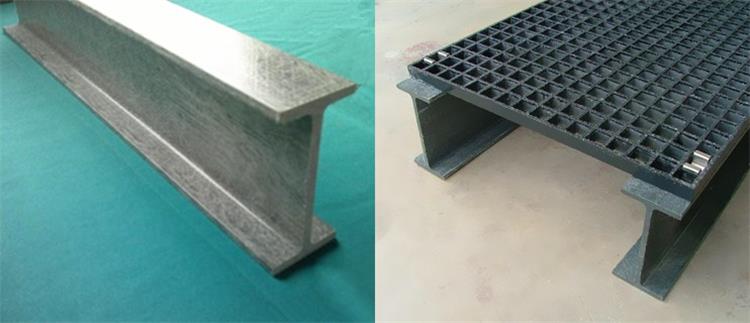

Fiberglass Structural Beams

Type

FRP Beam

Material

ECR Glass Fiber + Resin (ORTHO,ISO,VE,PHENOLIC)+Filling (ATH)

Size

Can be customized (pls check detail as below form)

Color

According to RAL Book.Yellow, Orange, Blue, Green, Grey, etc. can be cutomized

Light Weight / High Strength

Low Density (about 1.8), 1/4 of steel ,2/3 of aluminum.Specific strength

Anti-Fire / Safety

Good performance of electric insulation,10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen index≥32, Anti-fire and Pass test of ASTM-E84.

Anti-Corrosion

No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture.

Anti-skid

Different process mode on surface, concave, gritted, increase friction factor.

Anti-aging

Have more than 20 years effective service life under normal outdoor working condition.

Anti-fatigue

Moderate flexibility reduces the workers` pressure on legs and waist

Easy maintenance

have alternative and bright colors. Non-fading. Easily for clean.

Excellent economic benifits

Excellent comprehensive economic benefits

HB76

76x76x6.4x6.4

HB102A

102x102x6.4x6.4

HB102B

102x102x8.0x8.0

HB152A

152x152x6.4x6.4

HB152B

152x152x9.5x9.5

HB203A

203x203x9.5x9.5

HB203B

203x203x12.7x12.7

HB203C

203x203x6.4x6.4

HB254A

254x254x9.5x9.5

HB254B

254x254x12.7x12.7

HB305

305x305x12.7x12.7

IB25

15x25x6.4x4.0

IB32

15x32x6.4x4.0

IB38A

15x38x4.0x6.4

IB38B

30x38x3.0x3.0

IB45A

45x180x12.0x9.0

IB45B

45x180x12.7x12.7

IB50A

50x102x6.4x6.4

IB50B

50x102x8.0x8.0

IB60B

60x180x6.4x6.4

IB76A

60x180x6.4x6.4

IB76B

76x152x9.5x9.5

IB102A

102x203x9.5x9.5

IB102B

102x203x12.7x12.7

IB120

120x240x12x12

IB127A

127x254x9.5x9.5

IB127B

127x254x12.7x12.7

IB127C

127x152x9.5x9.5

IB127D

127x152x12.7x12.7

IB152A

152x305x9.5x9.5

IB152B

152x305x12.7x12.7
